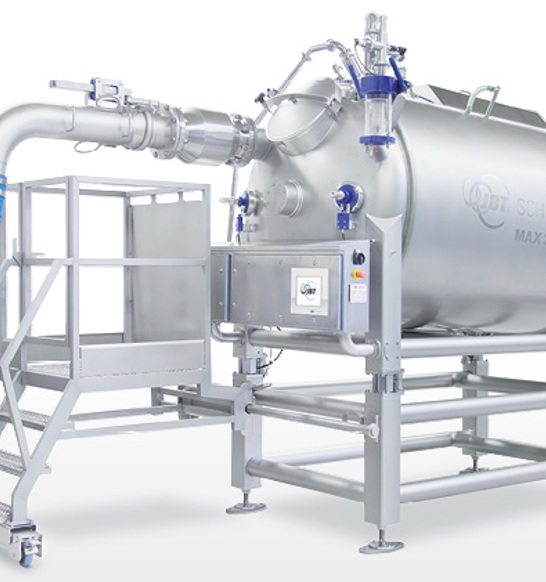

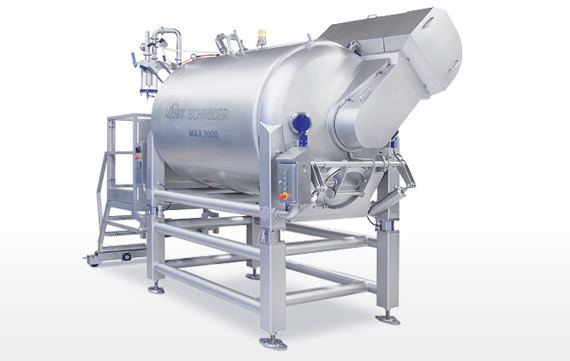

JBT Marel Schröder MAX 3000/6000 – Massager

MAX 3000 / 6000

The first class of massage units for large capacities – highly productive, powerful and reliable, can handle quantities of up to 3000 kg or 6000 kg. Designed in accordance with the in-line principle: Production lines with multiple units make ideal product flow possible without the risk of path crossing or cross-contamination.A wide range of options makes incorporation in any industrial manufacturing process possible. From automatic feeding by means of vacuum loading to program-controlled, intelligent Schröder FLOWMAX belt emptying.

Benefits and features

• A wide range of enhancements enable the MAX massaging technology to be optimally adapted to the individual manufacturing processes. The MAX loading container optimizes the process cycle through the program-controlled pre-batching of products with marinades (brine) and additives. The vacuum loading enables efficient and hygienic product supply. Manual or automatic discharge is possible.

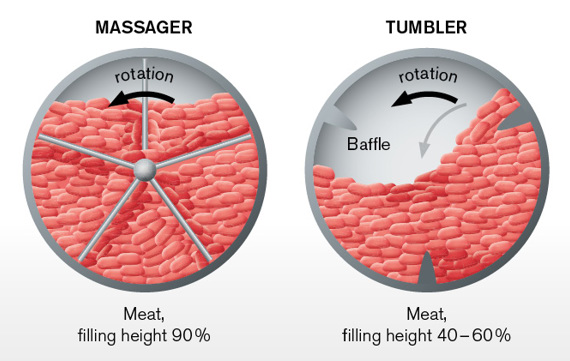

• In comparison with tumbler technology, less production space and fewer personnel are needed due to the automated processes.
• MAX technology: Increase in productivity
• Up to 50% reduction in processing times compared to the tumbler
• Increase in product yields
• Increase in slicer yields
• Significantly higher levels of system utilization compared to tumbler technology
• Energy savings thanks to increased efficiency
• Rationalization of the technological product flow (line capability)
• Integration in the Schröder VISMAX system

• Standard version
• Thermo-plate and external insulation

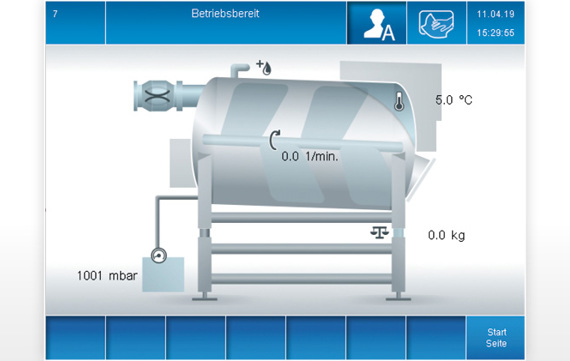

• SCHRÖDER 10.4“ touch panel
• 100 / 160 m³ / h rotary vane vacuum pump
• Connections for cleaning nozzles
• Connection to customer cooling system (coolant: propylene glycol brine)
• Pneumatic feeding valve
• Large emptying flap
• Options
• Paddle with bulge for delicate products
• Load cells
• Product-specific feeding (lifting tipper, belt, priming tanks)

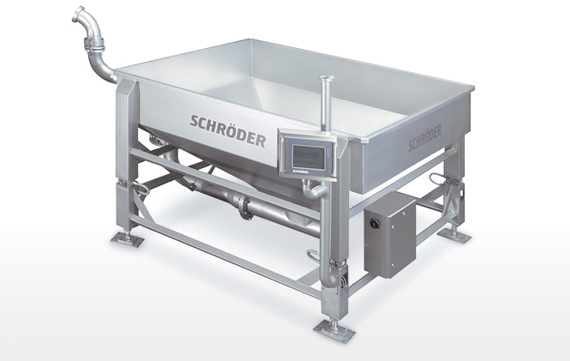

• Feeding container with batching software for producing a batch

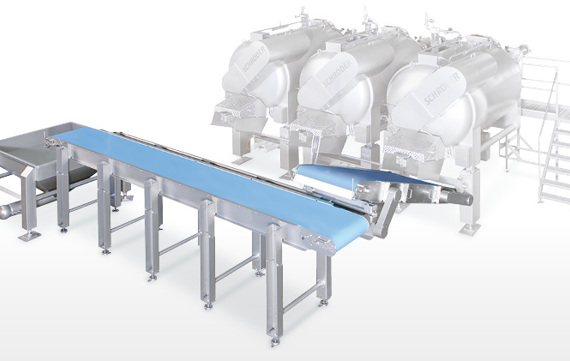

• FLOWMAX automatic conveyor emptying system
• Dosing and spraying unit
